16cbm Cattle Bedding Spreader

Name: 16cbm Cattle Bedding Spreader
Brand: Jointtech
Rating: 5.0 (28 reviews)

The free stall barn has sand in the stalls for maximum cow health. Spreaders for sawdust, wood shavings, rice husk and chopped straw mixed with hydrated calcium.They are the ideal tool for animal bedding with dry or moist material.

Model:
PL-16
Brand:
Jointtech

Availability:

Quantity:



Inquire Add to Basket

Bedding Spreader Straw spreader for cow bedding Cattle bedding material spreader Bedding spreader for dairy cows Bedding material spreading vehicle Wood chip spreader Forage spreader Spreader for dry bedding material Cow beddings spreading cart. Dairy cow bedding material

Product Description

Customer Use

Company Profile

Shipping And Payment

The main function of the spreading truck is to evenly distribute materials, capable of spreading various finely crushed materials such as straw, sawdust, rice husks, dried cow dung, and sand. Spreading dry litter in the barn of a freestall maximizes the health of the cow and increases milk production. It facilitates operations, enhances production efficiency, and reduces the labor intensity of workers. It is the ideal tool for animal bedding with dry or moist material.

The machine case is made of Q355 steel material, and the thickness of the auger is 8 mm. It is possible to sprinkle material from both sides of the machine. Low maintenance and no PTO' s, chains or blowers. The capacity of the bedding spreader is from 5-30 cubic meters, and the volume can be customized. The throwing distance is adjustable from 0.5 to 6 meters, the throwing thickness ranges from 2 to 10 cm, and the working speed is between 3 to 50 km/h.

Product Parameters

Model	PL-16
Capacity	16m³
Size	626023002920mm
Power	160 hp
Auger	2 sets
Weight	6000kg
Max Load	10000kg
Discharge Method	Hammer type
Driving Speed	3-50km/h
Throwing Thickness	2-10cm
Spreading Width	0.5-6m

Details Images

Discharge structure

(1)The inner door of the discharge door can be adjusted according to the amount of bed cushion material;

(2)The discharge port press plate can be adjusted up and down to control the distance of throwing material.

Ladder

The ladder climbing ladder is facilitate the operator to watch the situation in the box.

Box Body Material: Q355

Floor Steel Thickness: 6 mm

Side Steel Thickness: 3 mm

Hydraulic oil circulation system

Auger

Prevent feed clogging and spread evenly, improve the reliability of equipment and reduce the failure rate.Auger thickness: 8mm.

Engine

Using well-known brand engine, strong power, easy to start in winter, emissions meet the national standards.

Large oil radiator

Double strong tires

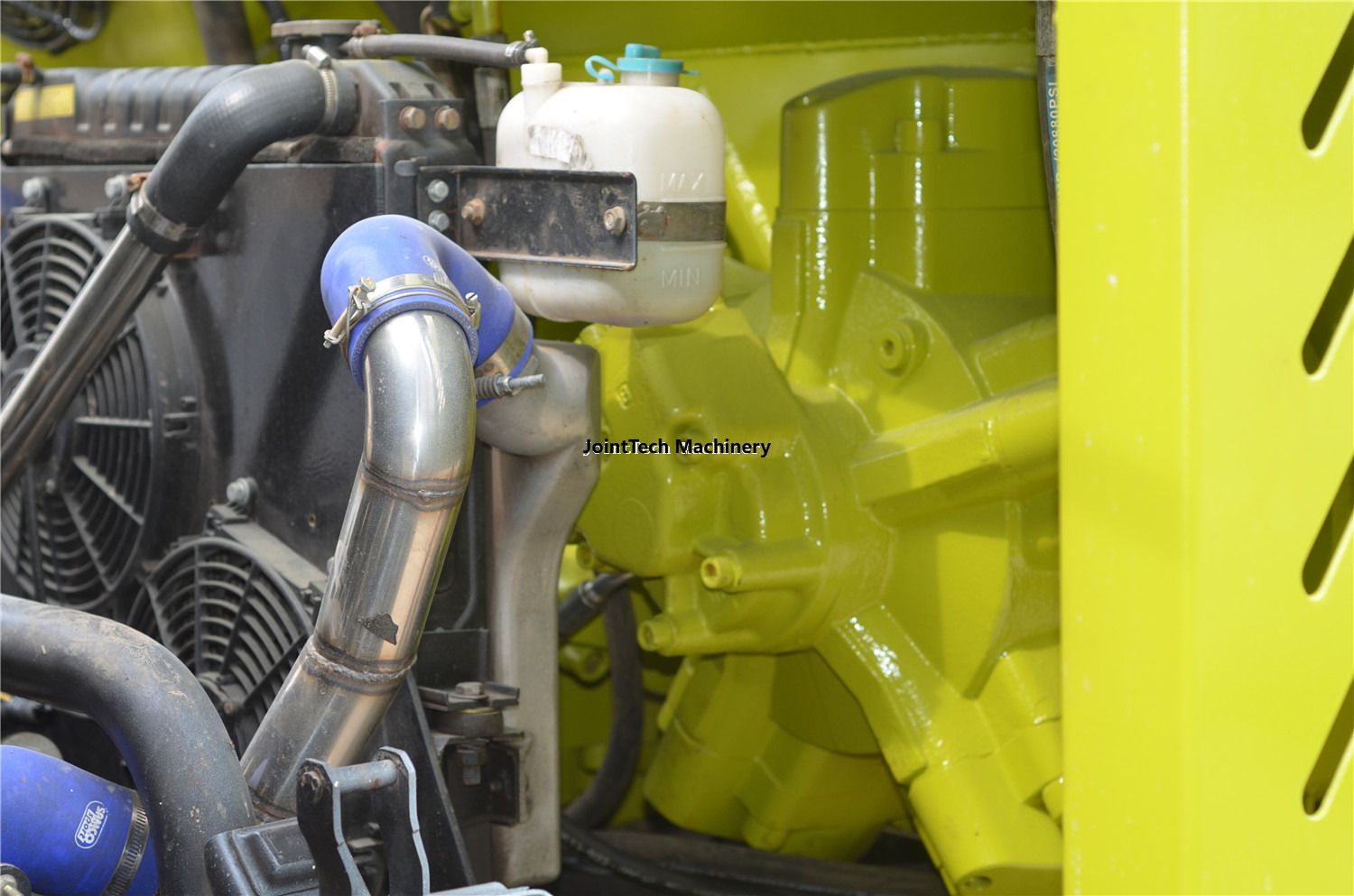

The discharge door motor

High speed plunger motor is used in the discharge door, the maximum speed is 1500 RPM; Can provide strong, continuous, stable torque and power to the hammer.

The reverse camera

Provide clear rearview images to ensure driving safety.

Hammer Type Outlet

Drive Shaft

Cockpit

Control Lever

product-abd30

Qingdao JointTech Machinery Inc. is located in Laixi,Qingdao City,close to Qingdao Airport and Qingdao Port.It is a professional manufacturer of dairy farm machiney equipment.It owns 2 factory, it is a modern machinery equipment manufacturer integrating design, production, sales and service.

Main product including TMR Feed Mixer,Cow Dung Removal Machine,Feeding Machine,Calf Feeder,Sand/Rice Husk Spreader,Silage Reclaimer,Milk Cooling Tank,Drinking Water Trough,Cow Hoof Trimming Machine and so on.
