The farm typically uses a vertical hydraulic hoof trimming machine to trim the hooves of dairy or beef cattle. It is generally necessary to trim once during the dry period and once during the lactation period of dairy cows. Effective hoof trimming work can ensure that the cattle live more comfortably, increase feed intake, milk production, and body weight, and timely prevent hoof diseases.

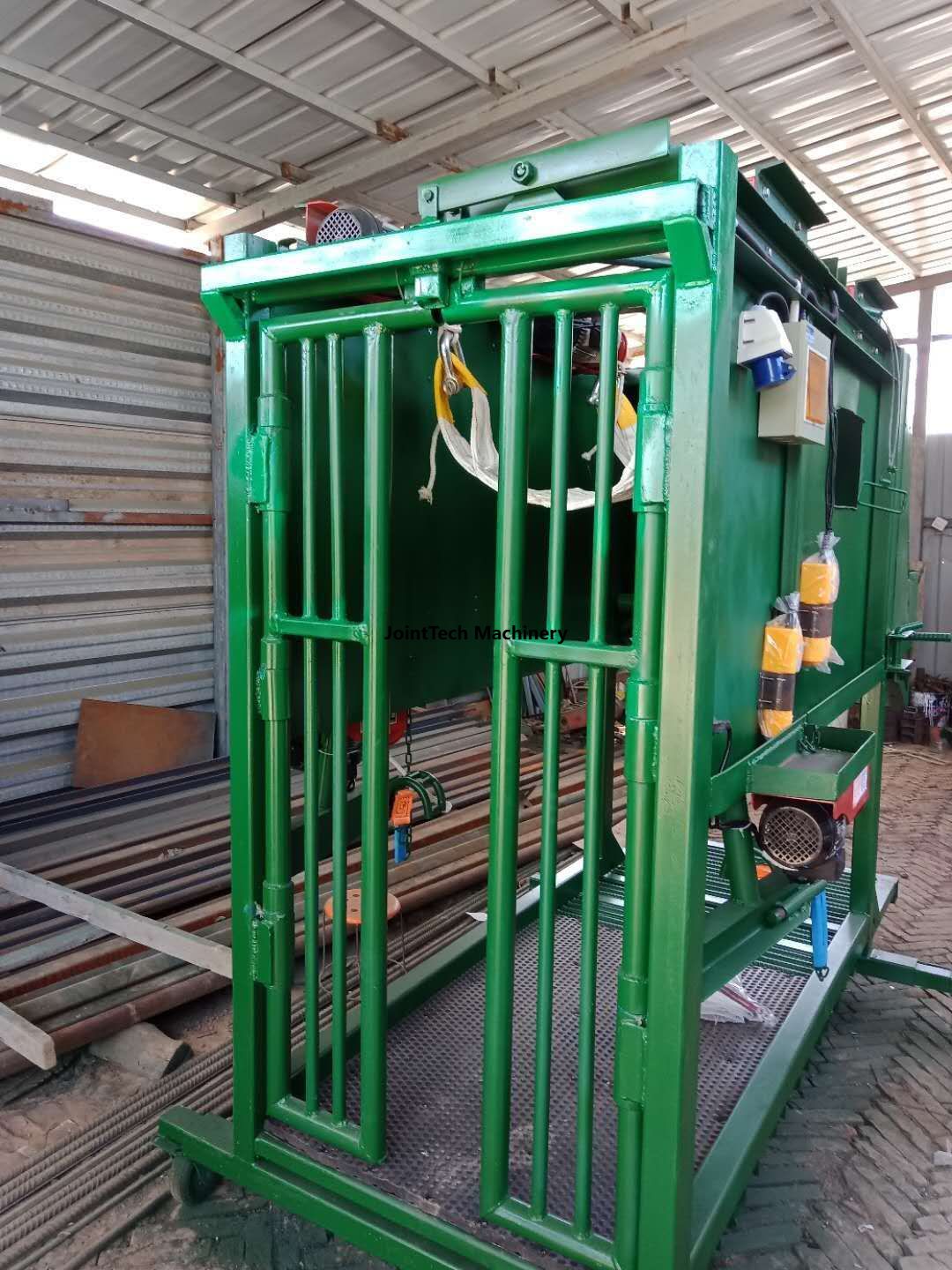

The hoof trimming equipment mainly consists of welded square pipes, oil cylinders, hydraulic pumps, hydraulic controls, electrical controls, motors, and electric pulling switches. The equipment is safe and reliable, easy to operate, and convenient to move. Each person can trim 60-100 cattle per day.
| Model | XT-YY380V |
| Size (L*W*H) | 240*140*220cm |
| Weight | 950kg |
| Lifting Height | 70cm |
| Power Requirement | 380V, 50HZ, four wire three phase, 6KW |
| Front Door | Hydraulic control |
| Rear Door | Hydraulic lifting |
| Belly Belt | Electric control |
| Lifting | Hydraulic control |
| 4 Hooves Lifting | Electric control |
| Motor Power | 2.2KW |
| Loading Weight | 400-1000kg |
| Work Efficiency | 60-100 cows per day, 1-2 operators |
Product Details
Why do farms need hoof trimming machines?
1. The size of the cow is very large, making it difficult to trim hooves without the aid of machines.
2. The hooves of cows are often in a harsh barn environment for a long time, which may lead to hoof diseases that can affect feeding, milk production, and weight gain.
3. Avoid injuries during the hoof trimming process due to struggles, or injuries to the worker's hands.
4. When using this equipment, individuals can easily complete hoof trimming, saving labor and time.
How to use this hoof trimmer?
1. Drive the cow into the hoof trimmer and secure it with the front door while closing the back door.
2. Ensure the belly band is positioned between the cow's front and back legs, lift the belly band to apply pressure on the cow's abdomen, and suspend the cow.
3. Bind the cow's four hooves with straps and activate the switch to raise the limbs.
4. After trimming the hooves, first release the hoof binding, then loosen the belly band.
5. Open the front door to release the cow, then open the back door to proceed to the next one.
Precautions
1. It is recommended to apply a layer of machine oil or discarded hydraulic oil before using the equipment to prevent rust.
2. Clean the equipment after each use.
3. Turn off the main power switch when not in operation for a long time.
4. Please check the power system before each use to prevent electric leakage.
5. Replace the strap promptly if it becomes damaged.
Qingdao JointTech Machinery Inc. is located in Laixi, Qingdao City, it is a professional manufacturer of dairy farm machiney equipment. It owns 2 factory, it is a modern machinery equipment manufacturer integrating design, production, sales and service.
Main product including TMR Feed Mixer, Cow Dung Removal Machine, Feeding Machine, Calf Feeder, Sand/Rice Husk Spreader, Silage Reclaimer, Milk Cooling Tank, Drinking Water Trough, Cow Hoof Trimming Machine and so on.
