Milk Cooling Tank with Customizable Capacity

Dairy farms rely on highly efficient cooling of the milk to keep the milk at a consistent temperature of about 4°C in the milk tanks until the milk is collected for further processing. Milk is stored at the farms in either closed or open milk tanks. To maintain the quality of the milk it is quickly cooled from 38°C leaving the cow to 4°C in the milk tank. The milk tank is typically equipped with a mixer to accelerate the cooling process and homogenize the milk.

Model:
JJ-500L
Brand:
Jointtech

Availability:

Quantity:



Inquire Add to Basket

Milk Cooling Tank dairy milk chiller milk chiller tank milk cooling machine milk cooler milk chiller milk cooling jars dairy cooling machine cooling tank refrigeration tank

Product Description

Product Image

Company Profile

Shipping And Payment

Product Description

The milk cooling tank consists of two main parts: the refrigerating unit and the tank body. The tank body is made of high-quality SUS304 stainless steel; the insulation layer utilizes polyurethane integral foaming technology; the unit employs the most advanced American Copeland flexible scroll compressor; optional automatic cleaning device and electronic metering device can be installed; an independent computer control system enables the equipment to operate in an intelligent automatic working state.

This product features rapid cooling speed, high efficiency, excellent insulation performance, low noise, reliable operation, simple operation, no need for on-site installation, and a long service life.

The cooling tank is made of three layers of food-grade 304 stainless steel.

The first layer: stores the milk.

The second layer: employs refrigerant R 404 (custom model) to lower the temperature of the milk. It cools the milk in the first layer from 80 degrees to 40 degrees. The compressor then begins to operate, further cooling the milk until the cooling halts at 4 degrees. If the milk exceeds 4 degrees, the compressor automatically activates cooling until it reaches 4 degrees.

The third layer: an 8-centimeter thick insulation layer.

Advantages

1. Equipped with an automatic cleaning device and mixing device.

2. Tank specifications can be customized.

3. Multiple control options to ensure efficient cooling.

4. Reliable quality and long lifespan.

Milk Cooling Tank Specification

Model	Capacity	Material	Power	Voltage	External Size	Packing Size
JJ-500L	500L	SUS304	1.8KW	220V	L:1860mm W:1300mm H:1100mm	L:2250mm W:1400mm H:1200mm
JJ-1000L	1000L	SUS304	3KW	380V	L:2200mm W:1400mm H:1180mm	L:2250mm W:1500mm H:1230mm
JJ-2000L	2000L	SUS304	5KW	380V	L:2760mm W:1860mm H:1180mm	L:2800mm W:1960mm H:1230mm
JJ-3000L	3000L	SUS304	6KW	380V	L:3000mm W:1860mm H:1180mm	L:3050mm W:1960mm H:1300mm
JJ-6000L	6000L	SUS304	14KW	380V	L:3800mm W:2300mm H:2000mm	L:3850mm W:2400mm H:2100mm
JJ-8000L	8000L	SUS304	16KW	380V	L:4000mm W:2350mm H:2000mm	L:4050mm W:2450mm H:1800mm
JJ-10000L	10000L	SUS304	20KW	380V	L:4355mm W:2350mm H:2340mm	L:4360mm W:2450mm H:2400mm

Product Detail

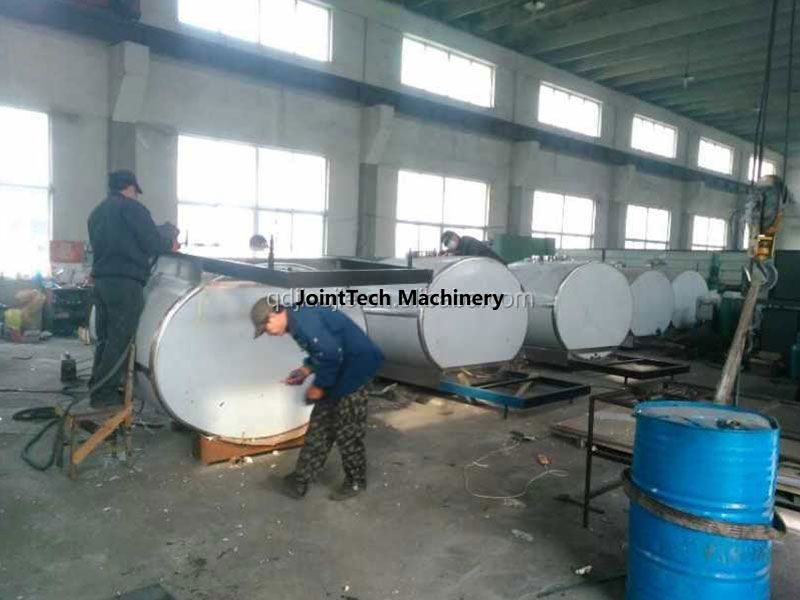

Polishing the tank

(1) The inner liner and all accessories or components in contact with milk are made of high-quality 304 stainless steel, meeting food safety requirements.
(2) The inner sealing lid of the tank is formed using a specialized mold spinning process, with a radius of curvature of 30mm, featuring a smooth surface that is easy to clean.

Insulation

(1) Made of polyurethane and with a thickness of 80mm, ensure that the milk temperature is 4°C when the milk is full.

(2) When the external temperature does not exceed 25°C, ensure that the temperature rise within 24 hours does not exceed 2°C.

Tank bracket installation

(1) The base plate of the refrigeration compressor is made of carbon steel and has been treated with deep anti-corrosion coating.
(2) The water inlet is located on the side of the milk tank, allowing for operation without the need for a ladder.
(3) Tank body support: facilitates cleaning of the ground beneath the equipment.
